Video converter,1 channel video+1 channel return data FC BIDI 20km,with BNC connector for cctv cameras
Description:
H-Lin fiber-optic video transceivers can simultaneously transmit 1-64 channels of 8-bit digitally encoded broadcast quality video / return or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Dry contact over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .
Features:
- 8-bit digitally encoded and non-compression broadcast quality video transmission
- Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols
- Support any high-resolution video signal
- Automatic compatible PAL, NTSC and SECAM video system
- Power supply and other parameter state indication, which can monitor the operation condition of system
- Support no-damage regenerative trunk of video
- Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .
- Special ASIC design .
- Industry-grade of operating temperature from -40℃ to 85℃ , which is applied to the different working environment
- Hot-swap function
- Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis.

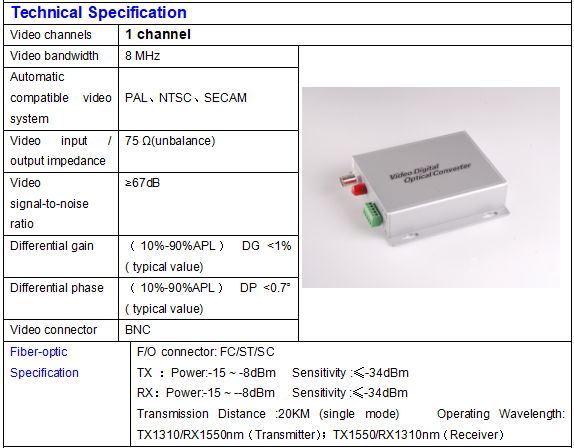

Technical Specifications :

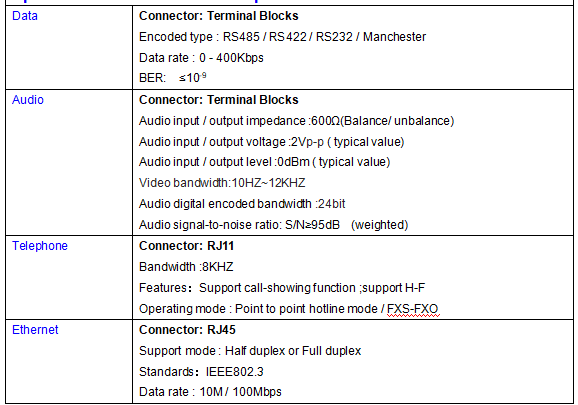

Specification of custom-made options
Quality Assurance
Dimensions: 11.1(L)×10.7(W)×2.8(H) cm
Operating Voltage: DC5V (we will offer external power supply from AC96-240V to DC5V for each unit )
Operating Temperature: -40℃ to +85℃
Storing Temperature : -55℃ to +85℃
Humidity: 0 to 95% non-condensing
MTBF : ≥ 105 hours
Warranty : 3 years
Application
Intelligent Transportation System
Connection of Sub-network for Surveillance Center
Public Security Surveillance
High Way & Toll Station Surveillance
Industrial Closed Circuit Television Surveillance

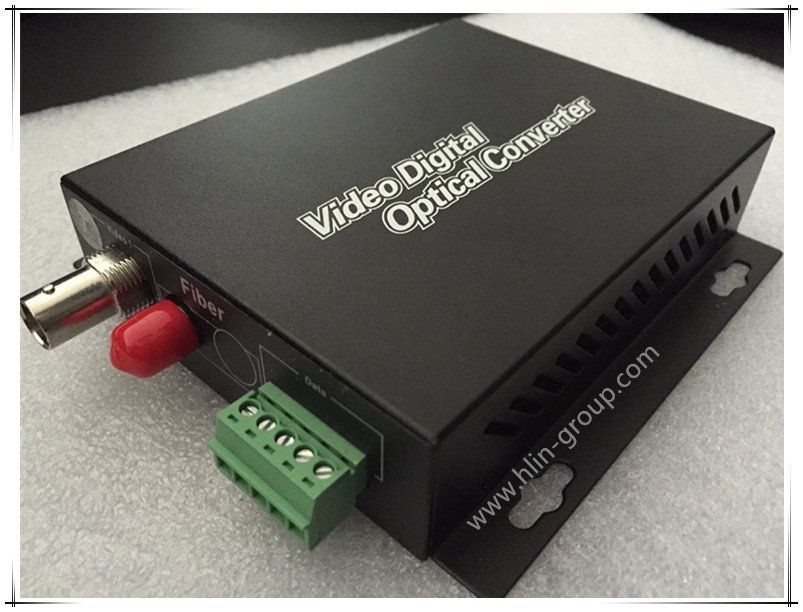

Product Picture:

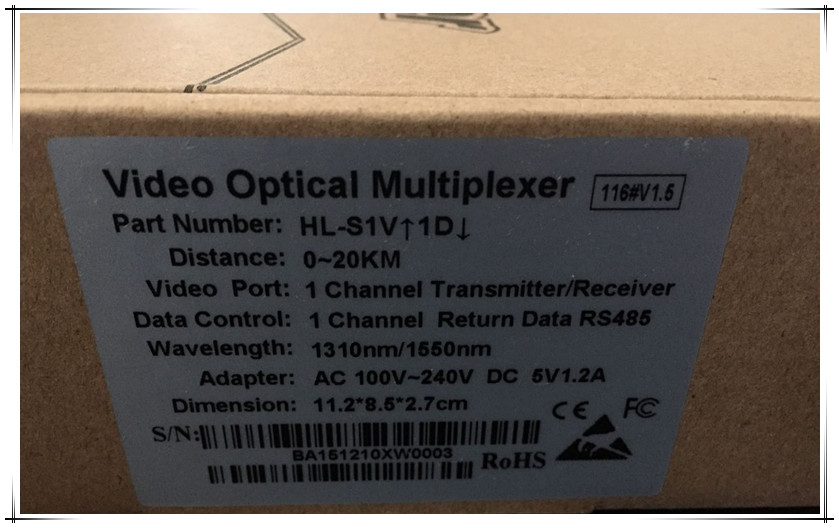

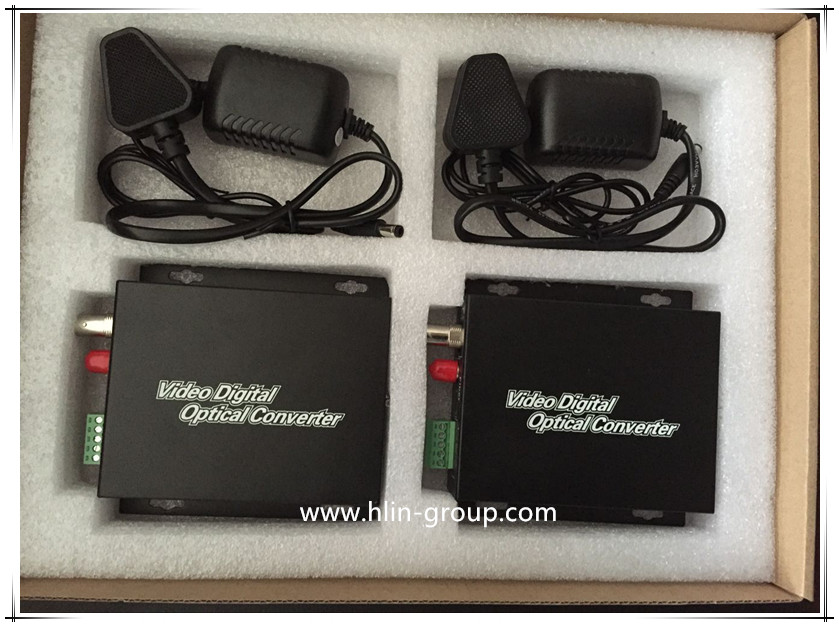

Production&Packge
