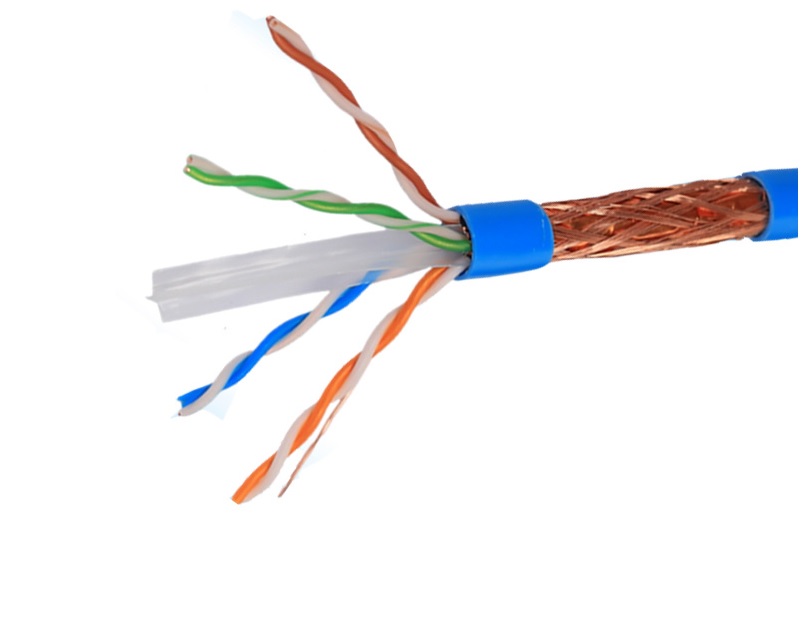

Cat6 SFTP 23AWG Solid/Stranded Copper Aluminum Cable Pass Fluke Test
Description:
Generic cabling products are used for modular and flexible transmission of information between buildings or groups of buildings. It can realize the connection of voice, data, exchange and all kinds of control equipments and communication network system. It includes network, telephone, monitoring, power supply and lighting system, etc.
On the market there are a lot of the cable, module inferior copper or alloy production, plastic parts made by the mould is not accurate and waste plastics into such products, which lead to the construction side can not pass test after laying.
Cat6 Cable is a kind of network cable,which are often used for connection in Switch,router to computer.The transmission frequency is expend to 250MHz or higher.Compared cat5e,there is a difference in the appearance and structure,it does not only add the insulated cross,make the 4pairs wire into the groove of corss,and the diameter of cable is more thick.
Indoor wiring, digital communications horizontal twisted pair cables, used in building integrated wiring system in the work area of communication between the frame out wiring end and the transition between the user and the communication of residential cabling system leads to the wiring wiring between aircraft. The center cross PE frame is adopted to separate the 4 individual pairs of wires, and the electrical transmission performance is reliable and excellent, and the bandwidth and SNR margin are enhanced. For communication over 250MHz channel broadband, the maximum transmission rate is 1000Mbps.
Parameter:
| Model | SFTP Cat6 Network Cable |
| Conductor Size | 23AWG |
| 4*2*1/0.56mm |
| Conductor Material | BC/CCU/CCA/OFC/CCS |
| Number of Conductor | 2P, 4P |
| Shiled | UTP/FTP/STP/SFTP/SSTP |
| Flammabilty Grade | CMX,CM,MP,CMG,MPG,CMR,MPR |
| Indoor/Outdoor | Single jacket/Double Jacket |
| Insulation Thickness | 0.62mm |
| Number of Pairs-4 pairs | Pair1: Orange/white orange |
| Pair2: Blue/White Blue |
| Pair3: Green/white Green |
| Pair4: Brown/white Brown |
| Jacket Material | PVC, ROHS PVC,LSZH PVC |
| Jacket Thickness | 1.02mm |
| DC Resistance(Max.) | 9.5Ω/100m |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance(Max.) | 5.4nF/100M |

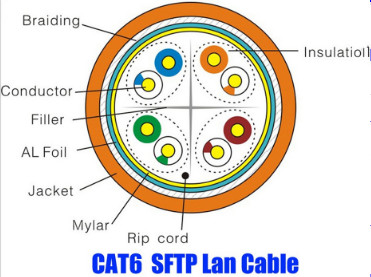

Product Instructure
Conductor: solid oxygen free copper, Φ 0.575 + 0.01mm.
Insulation: new HDPE, Φ 1 + 0.05mm.
Shielding layer: double shield (aluminum foil + transparent film + woven mesh).
The cross: yes.
Double skin sheath,new PVC PVC or LSZH low smoke halogen free barrier fuel.
Line pair chromatography: White / Blue / Blue / orange / orange, white / Green & Green / White / Brown & brown.
Line logarithm: 8 core 4 pairs twisted pair.
Application:
◆ 1000 Base-T4
◆ 1000 Base-TX
◆ 1000 VG-AnyLan
◆ 1000 Base-T
◆ 155Mbps ATM
◆ 622Mbps ATM
Standard:
ANST/TTA/ETL-568-B,YD/T1019-2001
